Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.

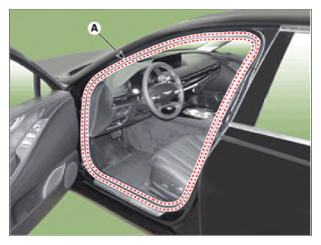

- Remove the mounting clips, remove both front door body side weatherstrip (A).

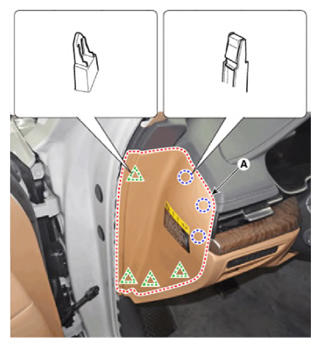

- Using a screwdriver or remover, remove the crash pad side cover [LH] (A).

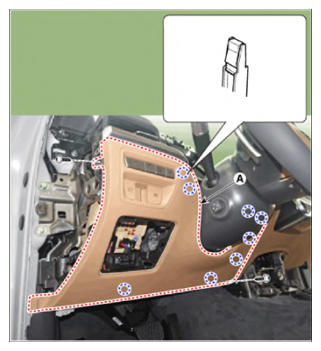

- After loosening the mounting screws, remove the crash pad lower panel (A).

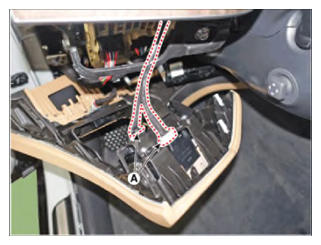

- Disconnect the various connectors (A).

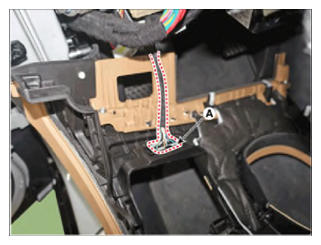

- Disconnect the diagnosis connector (A).
- Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
