Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Lower the steering wheel.
  2. Using a screwdriver or remover, remove the cluster fascia panel upper garnish (A).

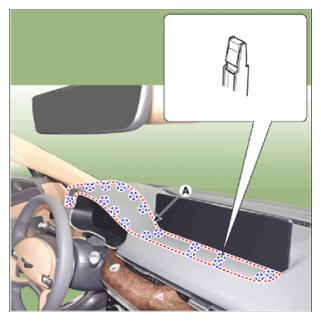

    G15549518Courtesy of HYUNDAI MOTOR AMERICA

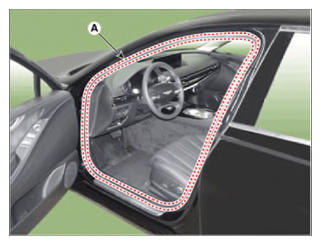

  3. Remove the mounting clips, remove both front door body side weatherstrip (A).
    G15549519Courtesy of HYUNDAI MOTOR AMERICA
  4. Using a screwdriver or remover, remove the crash pad side cover (A).

    [LH]

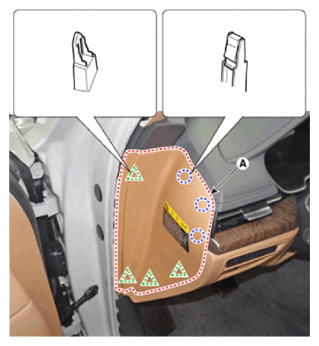

    G15549520Courtesy of HYUNDAI MOTOR AMERICA

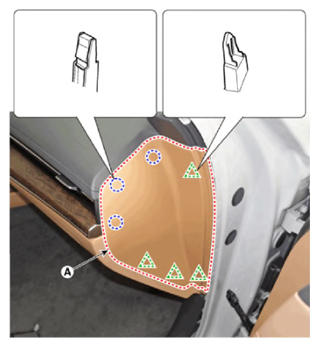

    G15549521Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the crash pad garnish

    [LH]

    1. Loosening the mounting screws, using a screwdriver or remover, remove the crash pad garnish (A).

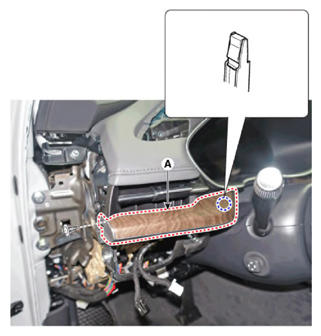

      G15549522Courtesy of HYUNDAI MOTOR AMERICA
    2. Press the lock pin to detach the mood lamp connector (A).

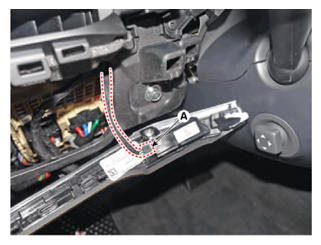

      G15549523Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

    1. Loosening the mounting screws, using a screwdriver or remover, remove the crash pad garnish (A).

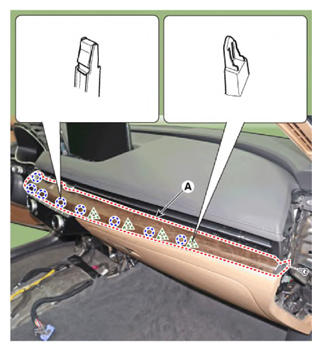

      G15549524Courtesy of HYUNDAI MOTOR AMERICA
    2. Press the lock pin to detach the connectors (A).

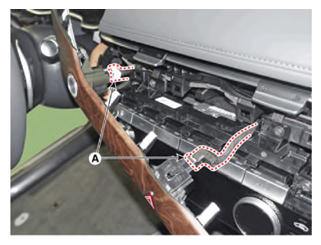

      G15549525Courtesy of HYUNDAI MOTOR AMERICA
  6. After loosening the mounting screw, remove the cluster facial panel (A).

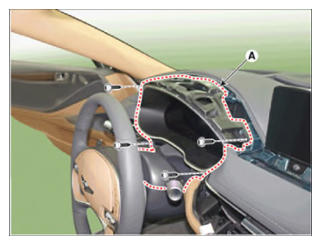

    G15549526Courtesy of HYUNDAI MOTOR AMERICA
  7. Install in the reverse order of removal.

    Information

    • Replace any damage clips.
