Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

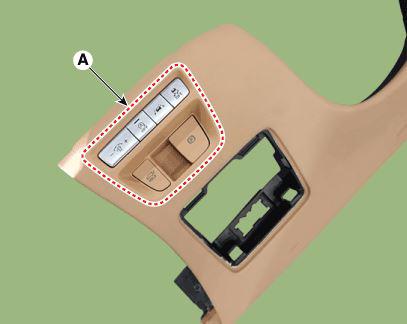

  3. Remove the crash pad lower switch (A) after loosening the screw.
    G15549138Courtesy of HYUNDAI MOTOR AMERICA

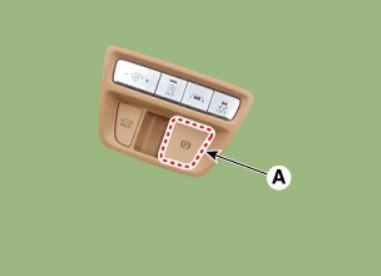

  4. Remove the EPB switch (A) after loosening the screw.
    G15549139Courtesy of HYUNDAI MOTOR AMERICA
