Home >> Genesis >> 2021 >> G80 2.5T Advanced, AWD >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Electrical Assembly >> Components And Components Location >> Front Seat

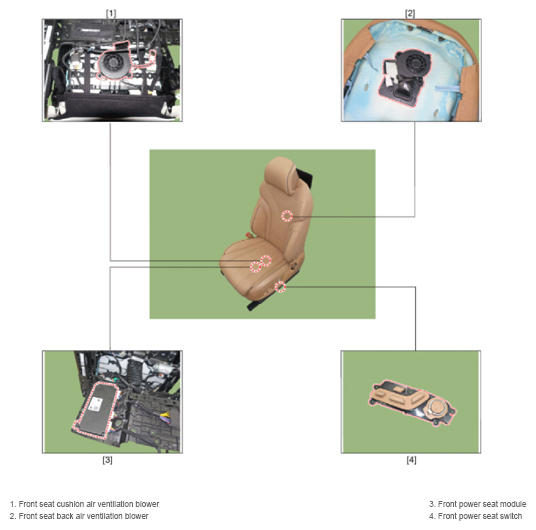

Front Seat

G15550127Courtesy of HYUNDAI MOTOR AMERICA
