Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Take care not to scratch the body surface.

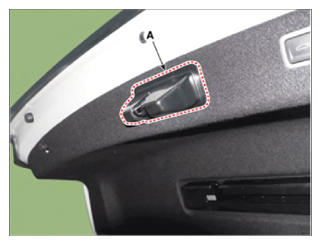

  1. Using a screwdriver or remover, remove the trunk lid latch cover (A).
    G15549244Courtesy of HYUNDAI MOTOR AMERICA

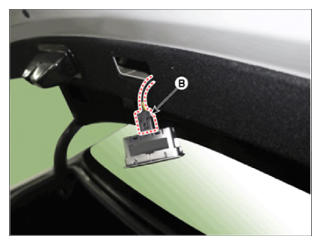

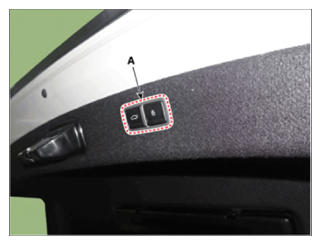

  2. Using a screwdriver, remove the trunk lid switch (A), and disconnect the connector (B).
    G15549245Courtesy of HYUNDAI MOTOR AMERICA
    G15549246Courtesy of HYUNDAI MOTOR AMERICA

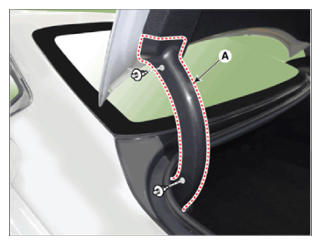

  3. Remove the clips, remove the trunk lid side cover (A).
    G15549247Courtesy of HYUNDAI MOTOR AMERICA

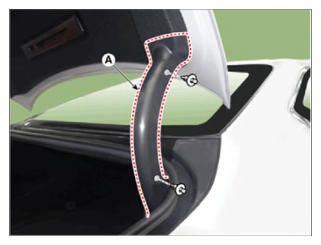

    G15549248Courtesy of HYUNDAI MOTOR AMERICA

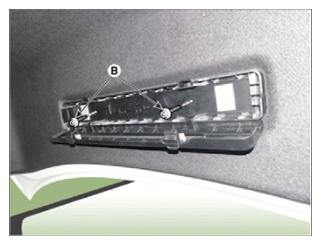

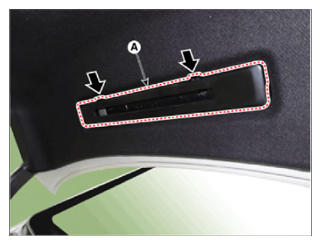

  4. Open the trunk lid inside handle (A) by pressing the lock pin, and disconnect the mounting screw (B).
    G15549249Courtesy of HYUNDAI MOTOR AMERICA
    G15549250Courtesy of HYUNDAI MOTOR AMERICA

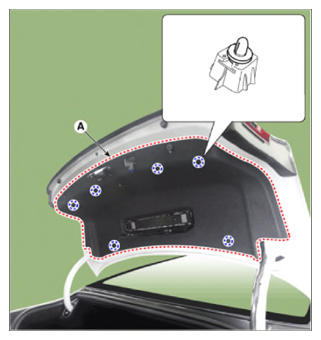

  5. After loosening the mounting clips, remove the trunk lid trim (A).
    G15549251Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.

    Information

    • Make sure the trunk lid opens or closes properly.
    • Replace any damaged clips.

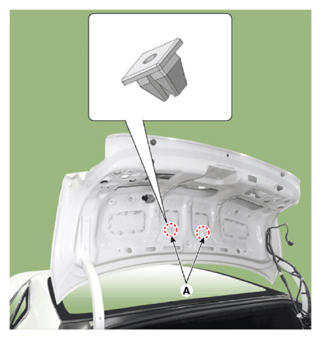

    • Remove the grommet (A) after removing the trunk lid trim.
      G15549252Courtesy of HYUNDAI MOTOR AMERICA
