Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Take care not to scratch the body surface.

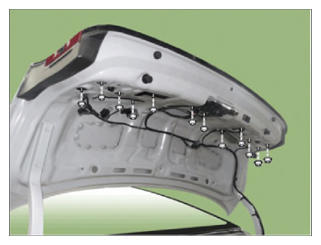

- Remove the trunk lid trim.
(Refer to Trunk Lid - "TRUNK LID TRIM ")

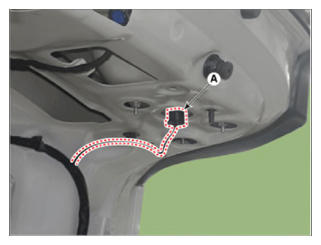

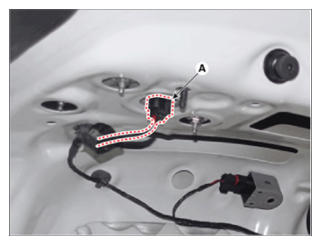

- Detach the inside rear combination lamp connector (A).
[LH]
[RH]

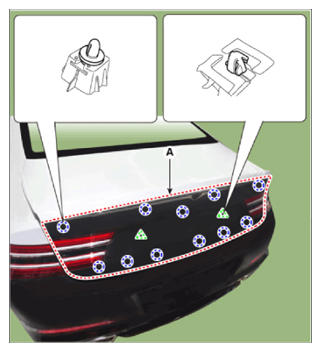

- Loosen the mounting nut, and remove the trunk lid back panel (A), using a screwdriver or remover.
- Install in the reverse order of removal.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips.
