Interior Antenna 1

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel. (Refer to Body - "CRASH PAD CENTER PANEL ")

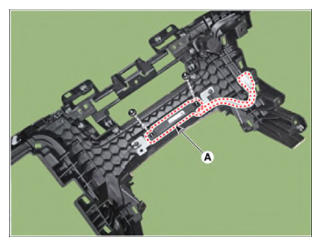

  3. Loosen the mounting nuts and remove the interior antenna 1 (A).
    G15550060Courtesy of HYUNDAI MOTOR AMERICA
