System Structure

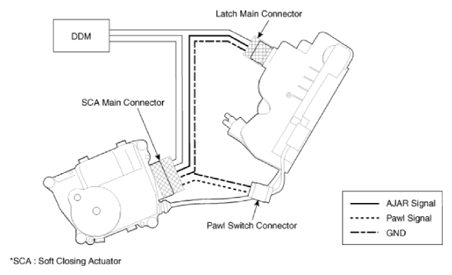

Following is a diagram of the driver's side door lock and power latch units.

DDM detects and controls the state of power and switch (lock/unlock switch, door key switch) of power door latch lock/unlock activation, and power latch function is independently operated.

Courtesy of HYUNDAI MOTOR AMERICA
