Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the glove box housing cover.
(Refer to Body - "GLOVE BOX HOUSING COVER ")

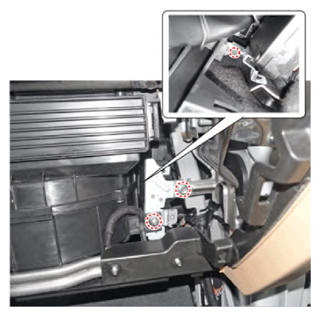

- Loosen the IBU mounting bolt, nuts and remove the IBU Unit.

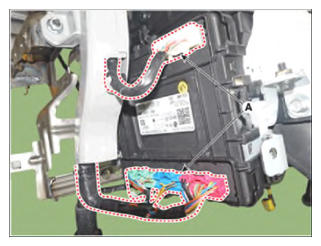

- Disconnect the IBU connectors (A).
(Refer to Body - "GLOVE BOX HOUSING COVER ")
