Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver side front door trim. (Refer to Body - "FRONT DOOR TRIM ")

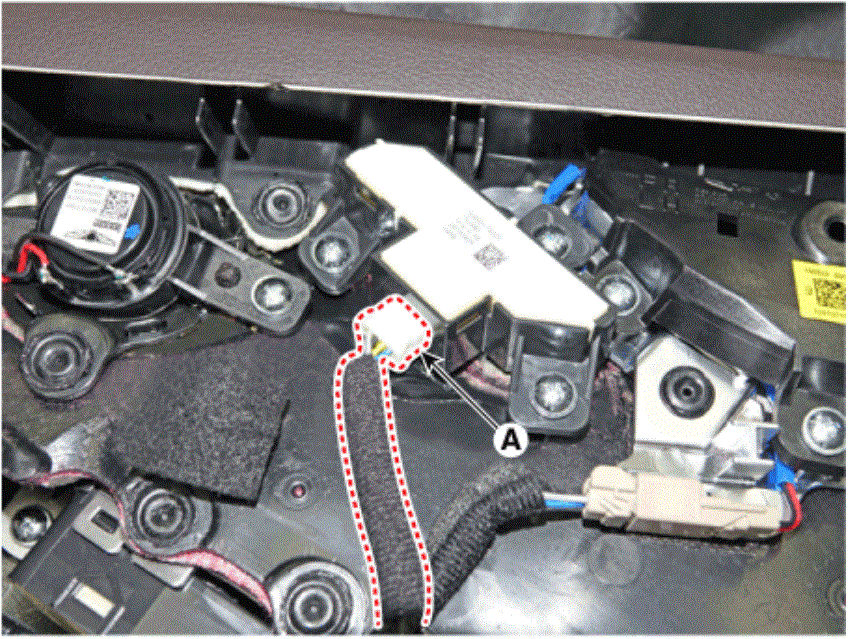

  3. Disconnect the IMS Switch connector (A).
    G15550125Courtesy of HYUNDAI MOTOR AMERICA

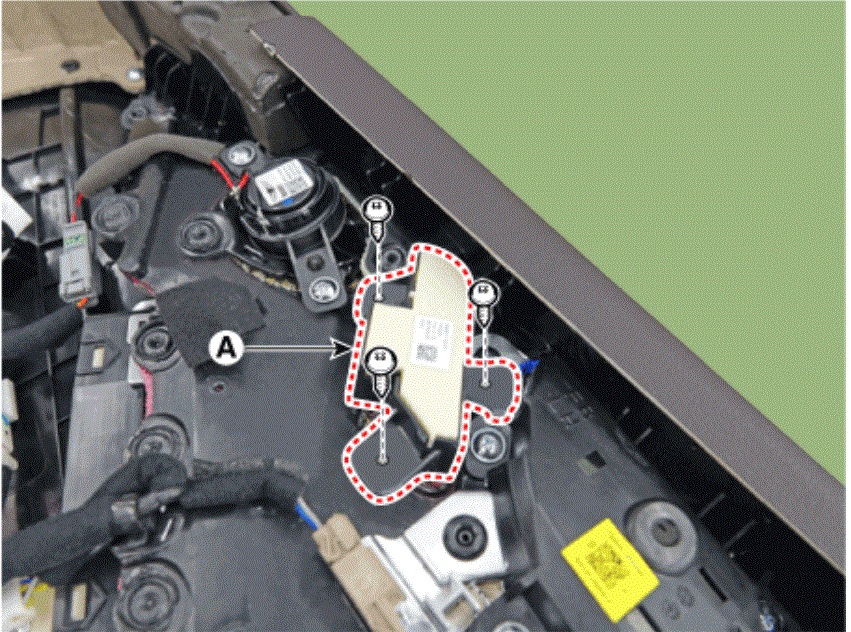

  4. Loosen the mounting screws and remove the IMS Switch (A).
    G15550126Courtesy of HYUNDAI MOTOR AMERICA
