Repair Procedures: Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the overhead console.
  3. Check for continuity between terminal No. 1 and No. 2. If there is no continuity, replace the hands-free mic.

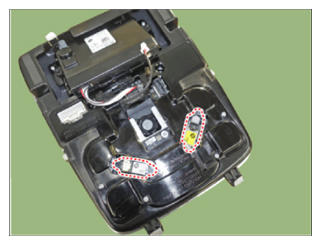

G15550021Courtesy of HYUNDAI MOTOR AMERICA
G15550022Courtesy of HYUNDAI MOTOR AMERICA
