Components And Components Location: Components

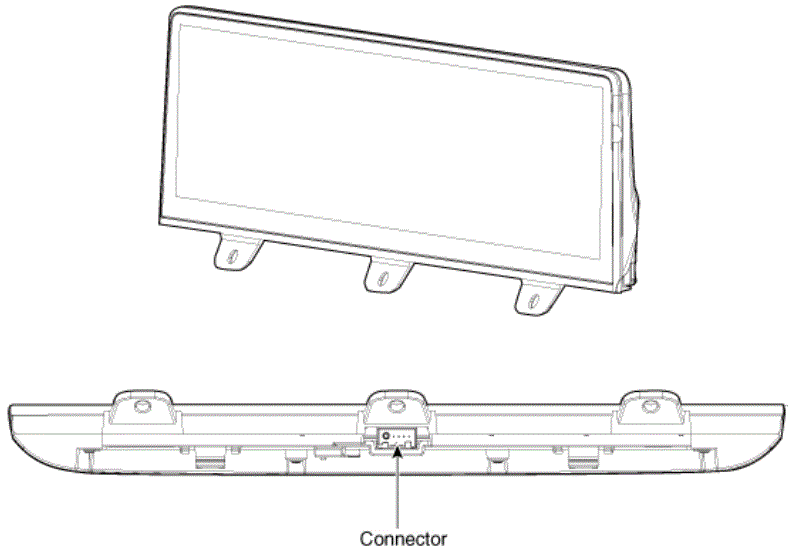

G15549955Courtesy of HYUNDAI MOTOR AMERICA
Connector NO Description

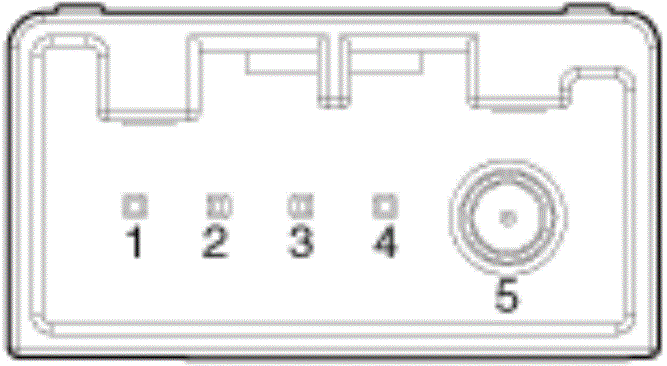

G14932280Courtesy of HYUNDAI MOTOR AMERICA
 1 Monitor Power
2 -
3 -
4 Monitor Ground
5 Front Monitor Video
