Repair Procedures: Removal

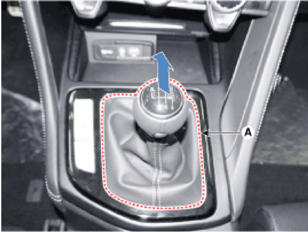

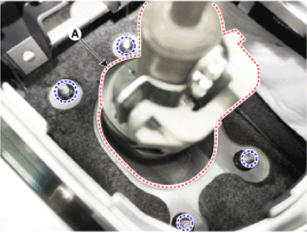

Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

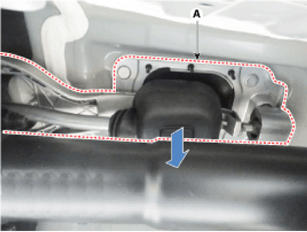

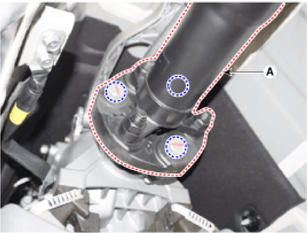

Tightening torque:

49.0 - 68.6 Nm (5.0 - 7.0 kgf-m, 36.2 - 50.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

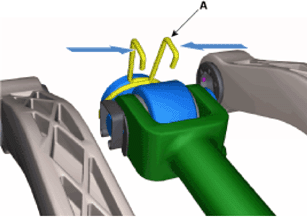

1. Press the clip (A) on the both sides and pull them towards the inside.

   Courtesy of HYUNDAI MOTOR AMERICA

2. Separate the retention clip (A) by pulling it toward the "F" arrow.

   Courtesy of HYUNDAI MOTOR AMERICA

3. Remove the select rod shaft (B).

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Push the retention clip enough and remove the shaft to the bottom.
   • When installing the retention clip, cover the shaft's upper and bottom parts completely with the retention clip so that the shaft is not out of its place.

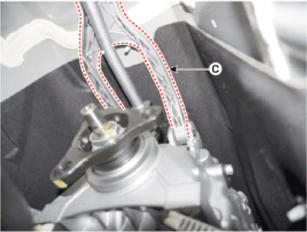

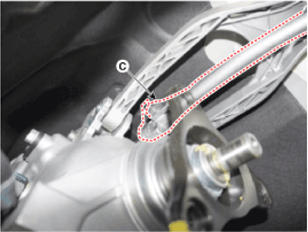

4. Separate the select rod (C) from the transmission.

   Courtesy of HYUNDAI MOTOR AMERICA

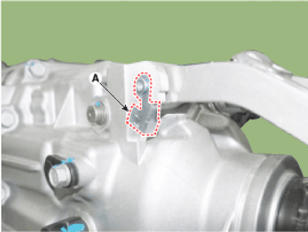

1. Remove the left side clip (A).

   Courtesy of HYUNDAI MOTOR AMERICA

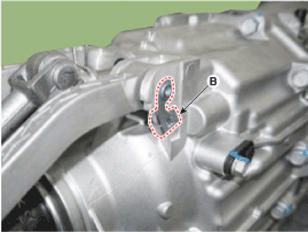

2. Remove the right side clip (B).

   Courtesy of HYUNDAI MOTOR AMERICA

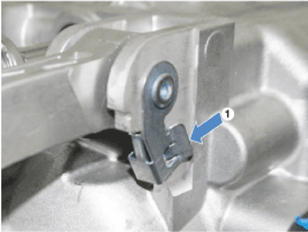

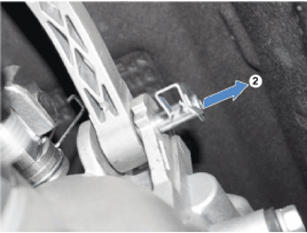

   IMPORTANT:

   • Remove the clip in the order of arrow direction.
   • Remove both clips in the same order.
   • When installing the do not reuse the clip.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

3. Separate the base bracket (C) from the manual transmission.

   Courtesy of HYUNDAI MOTOR AMERICA
