Repair Procedures: Removal

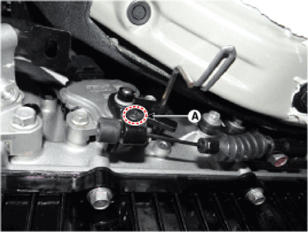

  1. Remove the fastener (A) and then removing the parking cable from the parking release lever.
    G14176279Courtesy of HYUNDAI MOTOR AMERICA

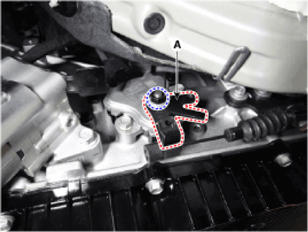

  2. Remove the parking release lever (A) after loosening the nut.
    G14176280Courtesy of HYUNDAI MOTOR AMERICA

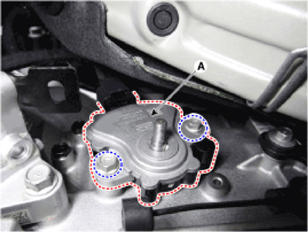

  3. Remove the parking switch (A) after loosening the bolts.
    G14176281Courtesy of HYUNDAI MOTOR AMERICA

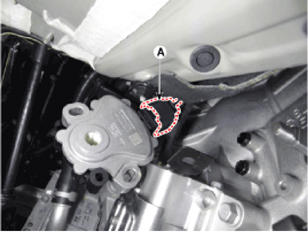

  4. Disconnect the parking switch connector (A).
    G14176282Courtesy of HYUNDAI MOTOR AMERICA
