End Of Line (EOL) Input

Overview and purpose
- The purpose is to ensure the initial operation safety by correcting the oil pressure differences between transmissions.
Condition required for inputting the hydraulic characteristic
- In case of changing the auto transmission assembly and TCM, perform "Oil-pressure characteristics input" procedure with GDS.
Oil-pressure characteristics (Bar code) location.

Courtesy of HYUNDAI MOTOR AMERICA

Method for inputting the hydraulic characteristic

In case of changing the automatic transmission assembly.

Perform "Oil-pressure characteristics input" procedure.
With the Internet access (automatic mode): Input serial number of the transmission.

Without the Internet access (manual mode): Input the oil-pressure characteristics in the bar code.

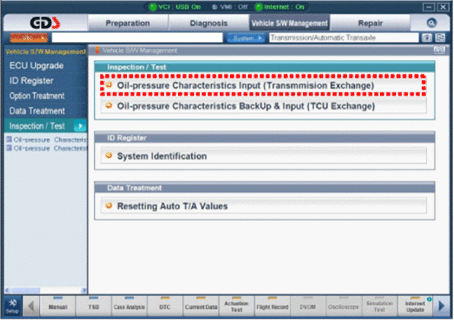

G14175947

Courtesy of HYUNDAI MOTOR AMERICA

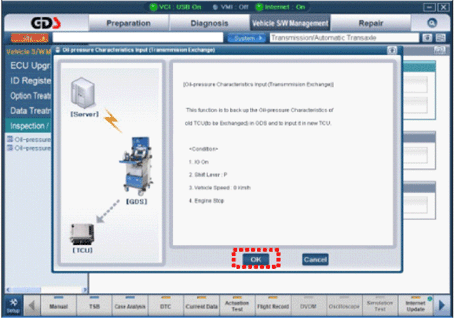

G14175948

Courtesy of HYUNDAI MOTOR AMERICA

With the Internet access (automatic mode).

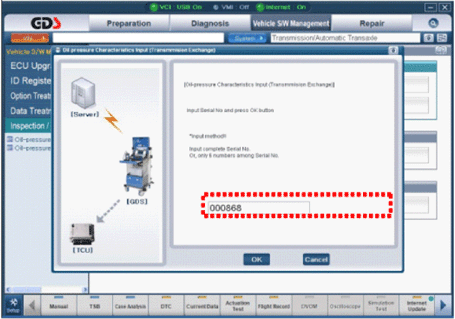

G14175949

Courtesy of HYUNDAI MOTOR AMERICA

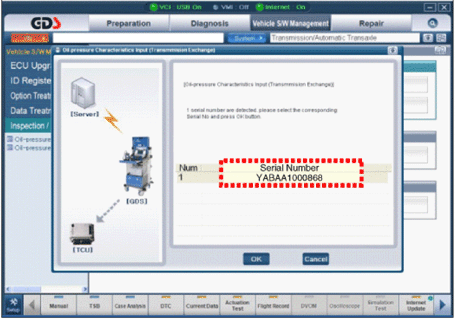

G14175950

Courtesy of HYUNDAI MOTOR AMERICA

Without the Internet access (manual mode).

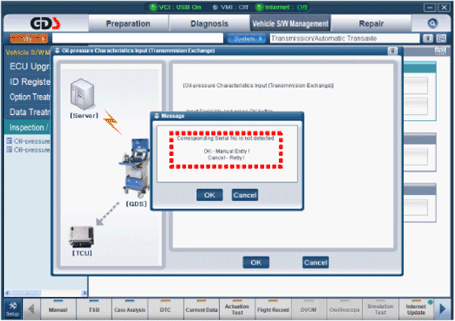

G14175951

Courtesy of HYUNDAI MOTOR AMERICA

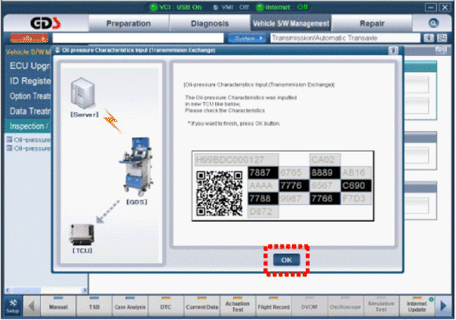

G14175952

Courtesy of HYUNDAI MOTOR AMERICA

In case of changing the TCM.

Perform "Oil-pressure characteristics backup & input" procedure.

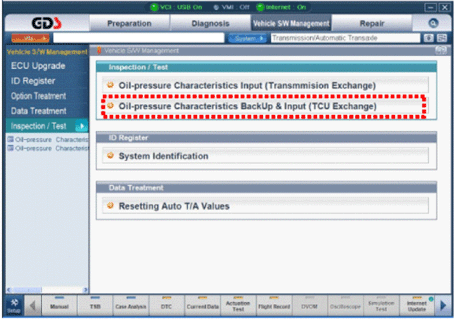

G14175953

Courtesy of HYUNDAI MOTOR AMERICA

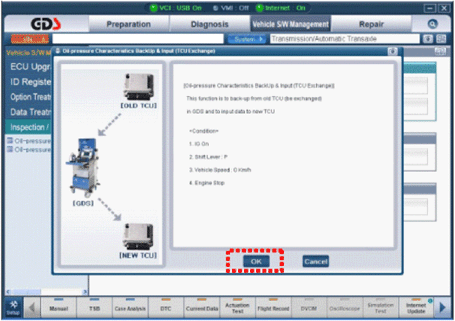

G14175954

Courtesy of HYUNDAI MOTOR AMERICA

Perform "Oil-pressure characteristics backup" procedure.

G14175955

Courtesy of HYUNDAI MOTOR AMERICA

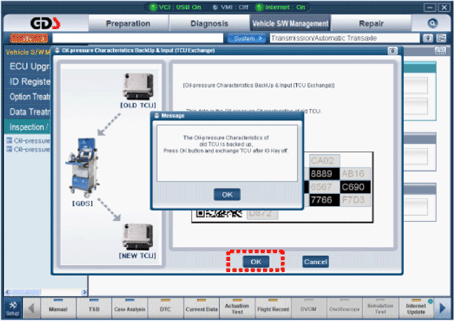

G14175956

Courtesy of HYUNDAI MOTOR AMERICA

Perform "Oil-pressure characteristics input" procedure.

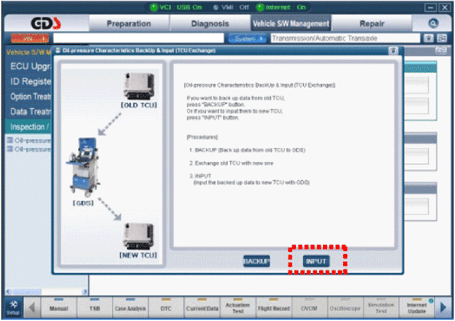

G14175957

Courtesy of HYUNDAI MOTOR AMERICA

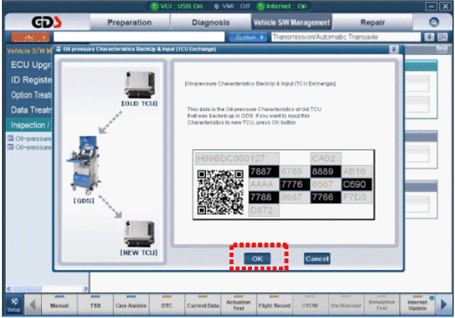

G14175958

Courtesy of HYUNDAI MOTOR AMERICA

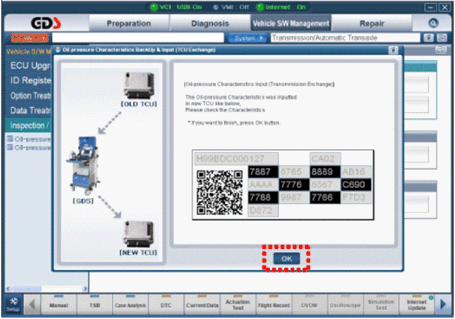

G14175959

Courtesy of HYUNDAI MOTOR AMERICA
