Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.

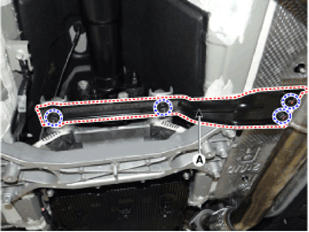

Remove the bolts and then removing the stay (A).
Tightening torque:

29.4 - 39.2 N.m (3.0 - 4.0 kgf.m, 21.7 - 28.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

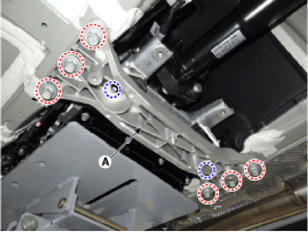

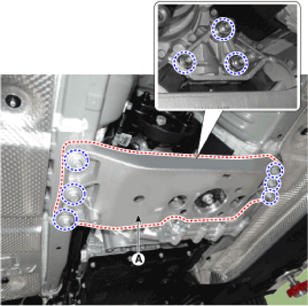

Remove the cross member (A) after supporting the transmission on a jack.
[2WD]

Tightening torque:

Bolts: 58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb-ft)

Nuts: 29.4 - 34.3 N.m (3.0 - 3.5 kgf.m 21.7 - 25.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

[4WD]

Tightening torque:

Bolts: 58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb-ft)

Nuts: 63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the muffler.
(Refer to Engine Mechanical System - "MUFFLER ")
Remove the propeller shaft assembly.
(Refer to Driveshaft and Axle - "PROPELLER SHAFT ")
Remove the transfer assembly.[4WD]
(Refer to 4 Wheel Drive (AWD) System - "TRANSFER ASSEMBLY ")

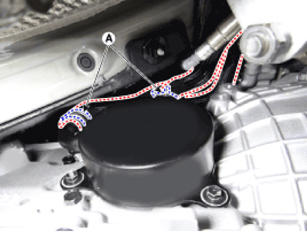

Remove the ATF warmer hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

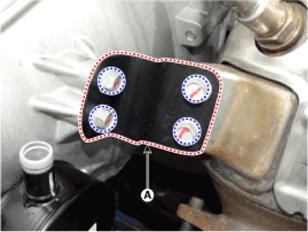

Remove the exhaust manifold stay (A).
Tightening torque:

49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

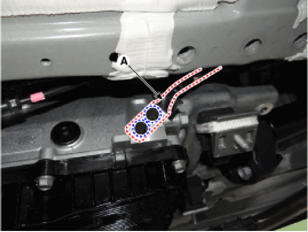

Remove the ground (A).
Tightening torque:

10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 14.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Remove the parking release cable.

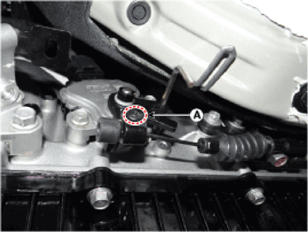

Remove the fastener (A) and then removing the parking cable.

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

When installing, The existing shift cable fastener must be replaced with new one. (Do not reuse it.)

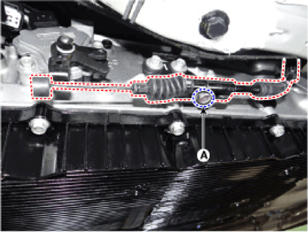

Remove the bolt (A) and then parking cable from the transmission.
Tightening torque:

12.7 - 15.7 N.m (1.3 - 1.6 kgf.m, 9.4 - 11.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Remove the wiring from the transmission.

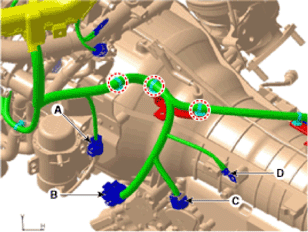

Disconnect the vacuum pump connector (A), EOP connector (B) and parking switch (C).

Remove the ground line (D) by loosening a bolt and remove the wiring fixing clip from the wiring bracket.

Tightening torque:

10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 14.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

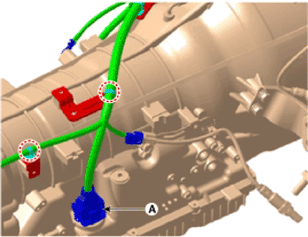

Remove the wiring fixing clip from the wiring bracket.

Courtesy of HYUNDAI MOTOR AMERICA

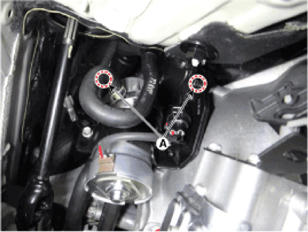

Remove the vacuum pump bracket mounting bolts (A) and then removing the vacuum pump from the transmission.

Courtesy of HYUNDAI MOTOR AMERICA

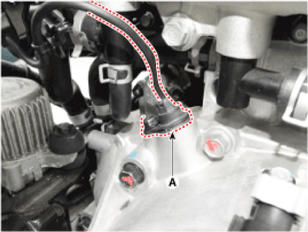

Remove the bolt and then disconnect the CKP sensor (A).
Tightening torque:

6.9 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.1 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

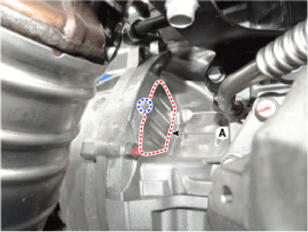

Remove the dust cover (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

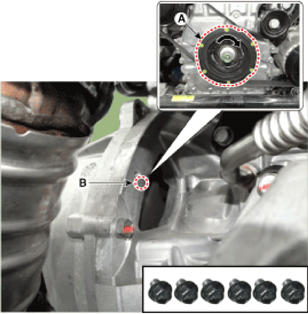

Loosen the torque converter mounting bolts (B-6ea) by rotating the crankshaft (A).
Tightening torque:

45.1 - 52.0 N.m (4.6 - 5.3 kgf.m, 33.3 - 38.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Pre-fasten the 6-ea bolts and fasten again to specified torque.
- Apply ATF on the bolt"s thread before fastening.

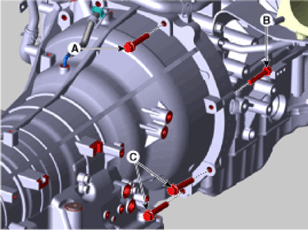

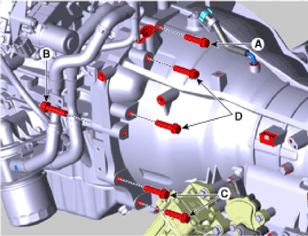

Loosen the transmission mounting bolts (A, B, C) and starter mounting bolts (D).
Tightening torque:

(A): 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)

(B): 34.3 - 46.1 N.m (3.5 - 4.7 kgf.m, 25.3 - 34.0 lb-ft)

(C): 39.2 - 46.1 N.m (4.0 - 4.7 kgf.m, 28.9 - 34.0 lb-ft)

(D): 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
After separating the transmission from the engine, remove the transmission by lowering the jack slowly.
NOTE: Be careful not to damage other nearby wiring or parts when removing the transmission assembly.
