Home >> Genesis >> 2021 >> G70 2.0T, RWD, Automatic Trans >> Repair and Diagnosis >> Steering >> Electronic Steering >> Electric Power Steering System >> Schematic Diagrams >> Notes

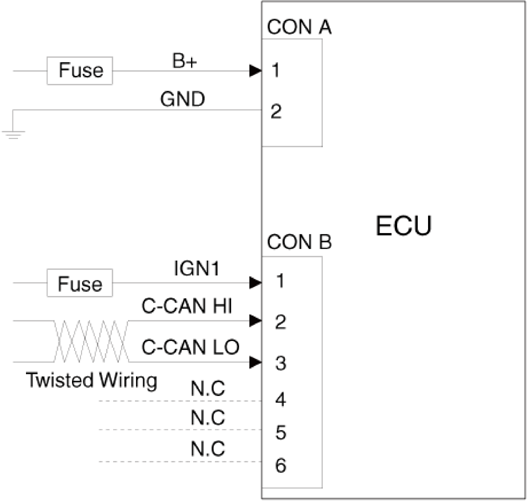

Schematic Diagrams: Notes

G14176725Courtesy of HYUNDAI MOTOR AMERICA
