Test For Changing Position Of Each Ignition Coil

A: Ignition coil w/misfire code

B: Ignition coil w/o misfire code

NOTE:
  • Do not move with spark plug at the same time (move the ignition coil only)
G14175410Courtesy of HYUNDAI MOTOR AMERICA

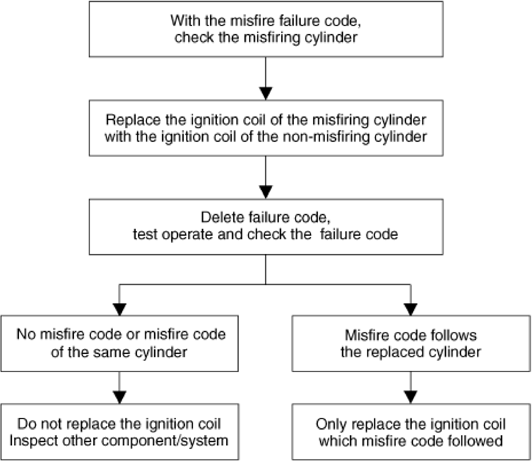

G14175411Courtesy of HYUNDAI MOTOR AMERICA
