Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

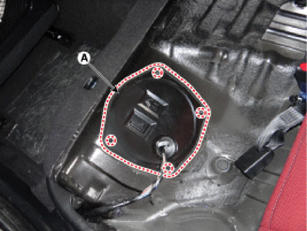

  4. Remove the fuel pump service cover (A) after loosening the mounting screws.
    G14175775Courtesy of HYUNDAI MOTOR AMERICA

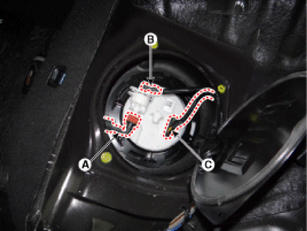

  5. Disconnect the fuel feed quick-connector (A).
  6. Disconnect the fuel pressure sensor connector (B).
  7. Disconnect the fuel pump connector (C).
    G14175776Courtesy of HYUNDAI MOTOR AMERICA

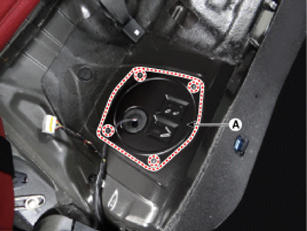

  8. Remove the sub fuel sender service cover (A) after loosening the mounting screws.
    G14175777Courtesy of HYUNDAI MOTOR AMERICA

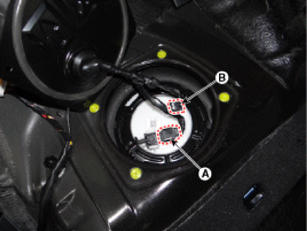

  9. Disconnect the sub fuel sender connector (A) and fuel tank pressure (B).
    G14175778Courtesy of HYUNDAI MOTOR AMERICA
  10. Lift the vehicle.
  11. Remove the center muffler assembly.

    (Refer to Engine Mechanical System - "MUFFLER ")

  12. Remove the propeller shaft assembly.

    (Refer to Driveshaft and Axle - "PROPELLER SHAFT ")

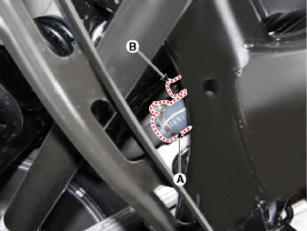

  13. Disconnect the fuel filler hose (A) and leveling hose (B).
    G14175779Courtesy of HYUNDAI MOTOR AMERICA

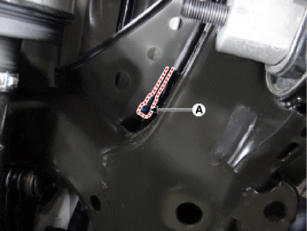

  14. Disconnect the ventilation (A).
    G14175780Courtesy of HYUNDAI MOTOR AMERICA

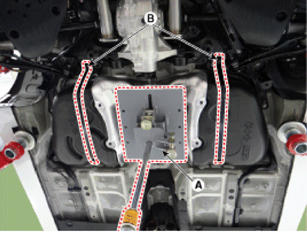

  15. Support the fuel tank with jack (A).
  16. Remove the fuel tank installation nut (B) and then loosen the fuel tank.
    G14175781Courtesy of HYUNDAI MOTOR AMERICA

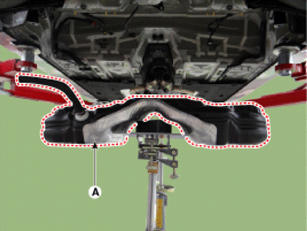

  17. Remove the fuel tank (A).
    G14175782Courtesy of HYUNDAI MOTOR AMERICA
