Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the fuel filler cap after opening the fuel filler door.
  3. Lift the vehicle.
  4. Remove the rear-left wheel & tire and wheel house cover.

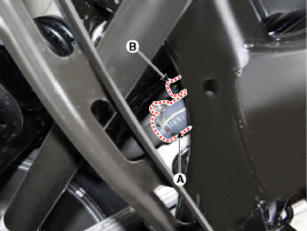

  5. Disconnect the fuel filler hose (A) and leveling hose (B).
    G14175817Courtesy of HYUNDAI MOTOR AMERICA

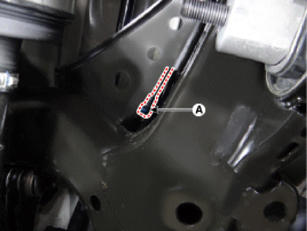

  6. Disconnect the ventilation (A).
    G14175818Courtesy of HYUNDAI MOTOR AMERICA

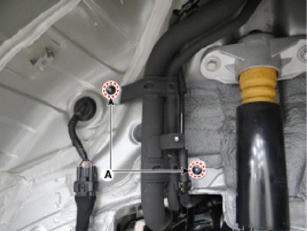

  7. Remove the filler-neck assembly from the vehicle after removing bracket mounting nuts (A).
    G14175819Courtesy of HYUNDAI MOTOR AMERICA
