Repair Procedures: Removal

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.

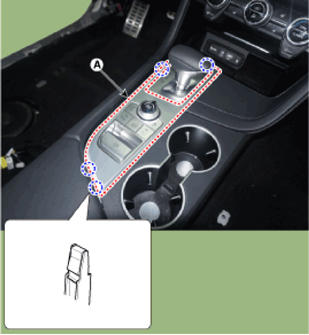

Using a screwdriver or remover, remove the console upper complete assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

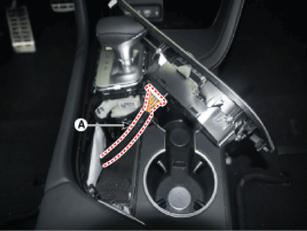

Disconnect the console upper cover switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
