Hood Switch Inspection

  1. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

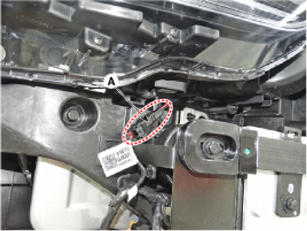

  2. Disconnect the hood switch connector (A).
    G14175768Courtesy of HYUNDAI MOTOR AMERICA
  3. Check for continuity between the terminals and ground as shown in illustration below.

    (Refer to Body - "HOOD LATCH ")

    G14175769Courtesy of HYUNDAI MOTOR AMERICA
