Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the knee airbag.

    (Refer to Restraint - "KNEE AIRBAG ")

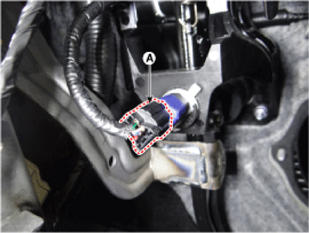

  4. Disconnect the brake lamp switch connector (A).
    G14175754Courtesy of HYUNDAI MOTOR AMERICA
  5. Pull the locking plate (A) as indicated by the arrow and then turn brake switch (B) 45° clockwise and remove it.
    G14175755Courtesy of HYUNDAI MOTOR AMERICA
  6. Inspect a removed stop lamp switch along the below procedures.
    1. Confirm a normal connection with terminal part.
      • A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.
        G14175756Courtesy of HYUNDAI MOTOR AMERICA
    2. Perform the inspection of parts resistance.
