Repair Procedures: Removal

  1. Turn the ignition switch OFF.

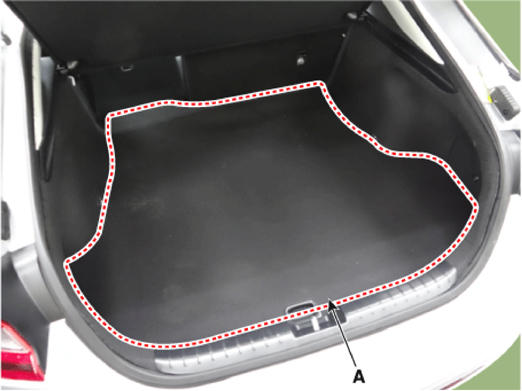

  2. Remove the luggage covering (A).
    G14175703Courtesy of HYUNDAI MOTOR AMERICA

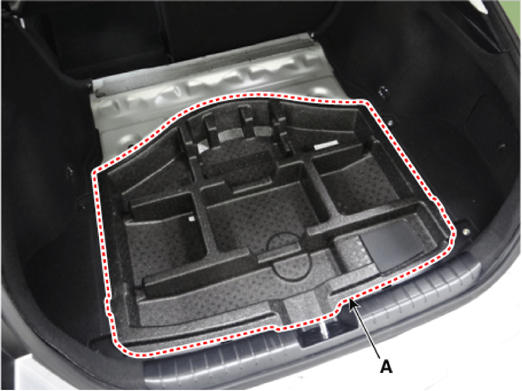

  3. Remove the luggage center tray (A).
    G14175704Courtesy of HYUNDAI MOTOR AMERICA

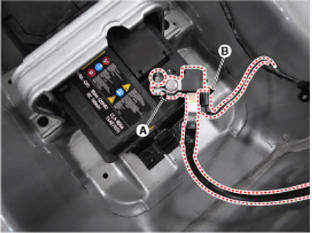

  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
    G14175705Courtesy of HYUNDAI MOTOR AMERICA

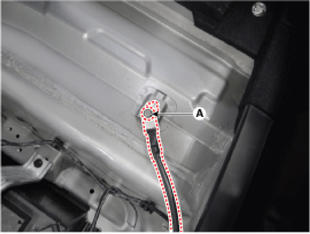

  6. Remove the battery sensor by loosening the mounting bolts (C).
    G14175706Courtesy of HYUNDAI MOTOR AMERICA
