Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the drive belt.

    (Refer to Engine Mechanical System - "DRIVE BELT ")

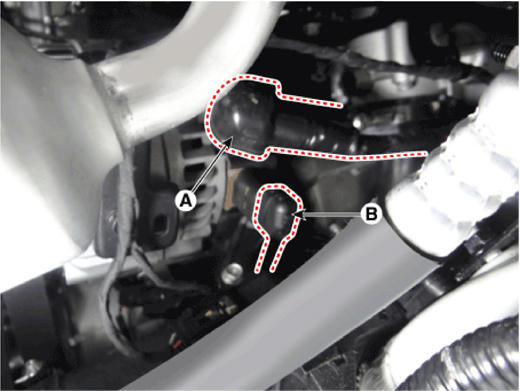

  3. Disconnect the alternator connector (B), and remove the cable (A) from alternator "B" terminal.
    G14175737Courtesy of HYUNDAI MOTOR AMERICA

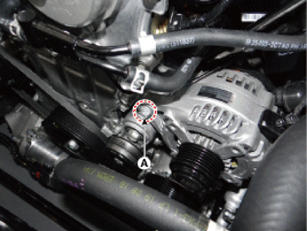

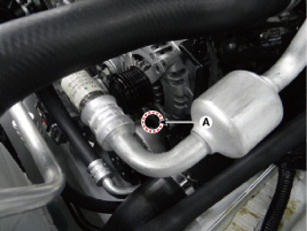

  4. Remove the alternator lower bolt and upper bolt (A).
    G14175738Courtesy of HYUNDAI MOTOR AMERICA
    G14175739Courtesy of HYUNDAI MOTOR AMERICA

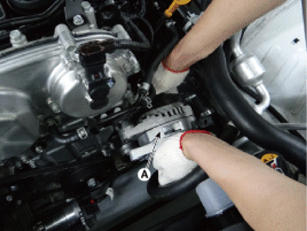

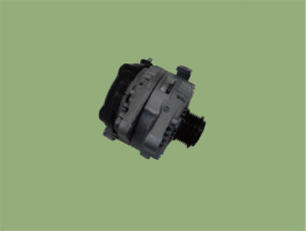

  5. Remove the alternator (A).
    G14175740Courtesy of HYUNDAI MOTOR AMERICA
    G14175741Courtesy of HYUNDAI MOTOR AMERICA
