AGM Battery: Specifications: Specification
AGM80L-DIN
| Item | Specification |
|---|---|
| Model type | AGM80L-DIN |
| Capacity [20HR/5HR] (AH) | 80/64 |
| Cold Cranking Amperage (A) | 800 (SAE)/800 (EN) |
| Reserve Capacity (Min) | 155 |
| Specific Gravity | 1.28 - 1.34 [25°C (77°F)] |
| Voltage (V) | 12 |
Information
CAUTION:

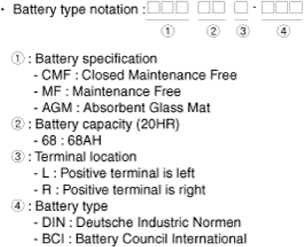

- Model Type Description
- Cold Cranking Ampere (CCA): A rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
- The rating is the number of amps a new, fully charged battery can deliver at -18°C (-0.4°F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
- The higher the CCA rating, the greater the starting power of the battery.
- RESERVE CAPACITY (RC): A battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.
- The rating is the number of minutes a battery at 26.7°C (80°F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
- The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.
Information
CAUTION:
[BCI Type]
[DIN Type]
[AGM DIN Type]
| Capacity (5HR/20HR) | Length | Width | Height | Total Height |
|---|---|---|---|---|
| L (mm) | W (mm) | T (mm) | TH (mm) | |
| 28/35 | 188 - 192 | 126 - 130 | 198 - 202 | 218 - 222 |
| 32/40 | 194 - 198 | 133 - 137 | 199 - 203 | 223 - 227 |
| 36/45 | 203 - 207 | 173 - 177 | 200 - 204 | 221 - 225 |
| 44/55 | 213 - 217 | 173 - 177 | 198 - 202 | 218 - 222 |
| 48/60 | 228 - 232 | 173 - 177 | 200 - 204 | 221 - 225 |
| 54/68 | 258 - 262 | 173 - 177 | 198 - 202 | 220 - 224 |
| 56/70 | 258 - 262 | 173 - 177 | 198 - 202 | 223 - 227 |
| 64/80 | 274 - 278 | 170 - 174 | 198 - 202 | 221 - 225 |
| 70/88 | 349 - 353 | 172 - 176 | 186 - 200 | 183 - 187 |
| 72/90 | 300 - 304 | 170 - 174 | 200 - 204 | 221 - 225 |
| 76/95 | 294 - 298 | 172 - 176 | 198 - 202 | 220 - 224 |
| 80/100 | 326 - 330 | 170 - 174 | 203 - 207 | 225 - 229 |
[DIN Type]
| Capacity (5HR/20HR) | Length | Width | Height | Total Height |
|---|---|---|---|---|
| L (mm) | W (mm) | T (mm) | TH (mm) | |
| 36/45 | 205 - 207 | 173 - 175 | 164 - 168 | 188 - 190 |
| 48/60 | 205 - 207 | 173 - 175 | 164 - 168 | 188 - 190 |
| 54/68 | 205 - 207 | 173 - 175 | 164 - 168 | 188 - 190 |
| 64/80 | 205 - 207 | 173 - 175 | 164 - 168 | 188 - 190 |
| 72/90 | 205 - 207 | 173 - 175 | 164 - 168 | 188 - 190 |
| 80/100 | 205 - 207 | 173 - 175 | 164 - 168 | 188 - 190 |
| 88/110 | 205 - 207 | 173 - 175 | 164 - 168 | 188 - 190 |
[AGM DIN Type]
| Capacity (5HR/20HR) | Length | Width | Height | Total Height |
|---|---|---|---|---|
| L (mm) | W (mm) | T (mm) | TH (mm) | |
| 40/50 | 205 - 207 | 173 - 175 | 164 - 168 | 188 - 190 |
| 48/60 | 227 - 229 | 173 - 175 | 164 - 168 | 188 - 190 |
| 56/70 | 276 - 278 | 173 - 175 | 164 - 168 | 188 - 190 |
| 64/80 | 312 - 314 | 173 - 175 | 164 - 168 | 188 - 190 |
| 72/90 | 351 - 353 | 173 - 175 | 164 - 168 | 188 - 190 |
| 84/105 | 392 - 394 | 173 - 175 | 164 - 168 | 188 - 190 |
