Components And Components Location: Components

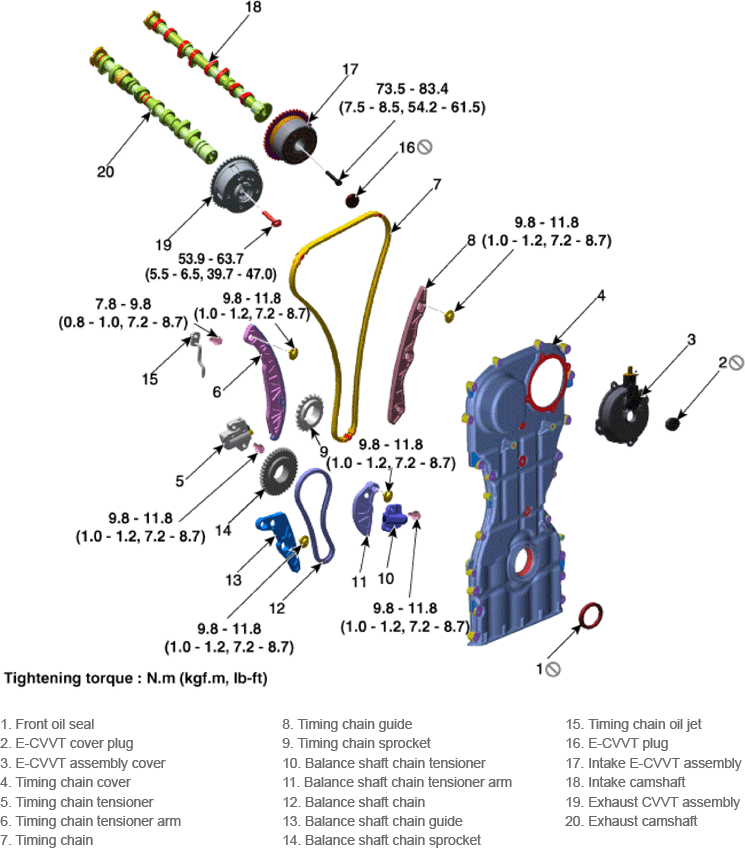

Fig 1: Timing Chain Components Location With Torque Specifications

G14174975

Courtesy of HYUNDAI MOTOR AMERICA
