Home >> Genesis >> 2021 >> G70 2.0T, RWD, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System - 2.0L >> Engine Oil >> Flow Diagram

Flow Diagram

G14175201

Courtesy of HYUNDAI MOTOR AMERICA

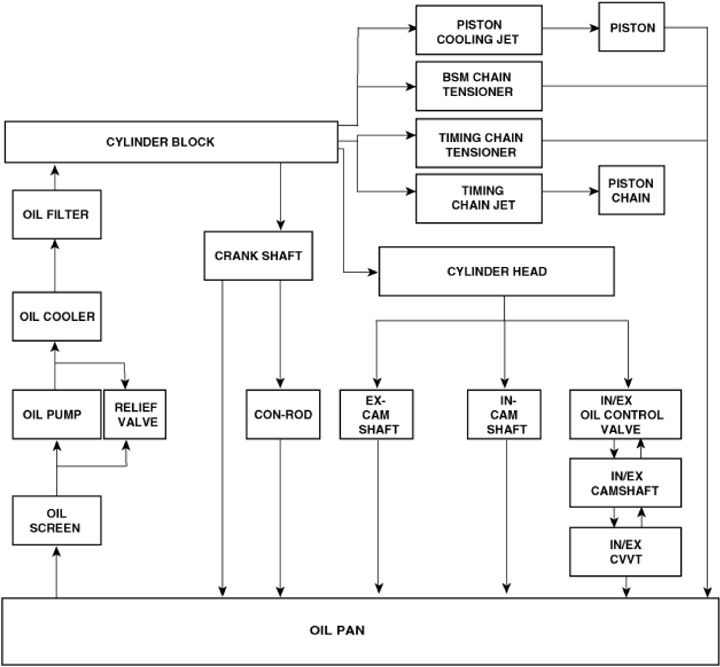

G14175202

Courtesy of HYUNDAI MOTOR AMERICA
