Balance Shaft Module (BSM) Chain System

Remove the timing chain.
(Refer to Timing System - "TIMING CHAIN ")

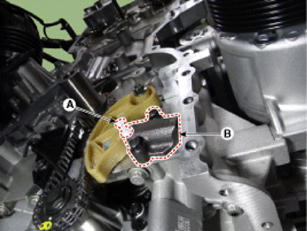

Install a stopper pin (A) after compressing the balance shaft chain tensioner.
Remove the balance shaft chain tensioner (B).

Courtesy of HYUNDAI MOTOR AMERICA

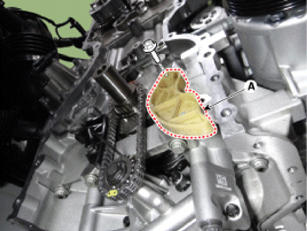

Remove the balance shaft chain tensioner arm (A).

Courtesy of HYUNDAI MOTOR AMERICA

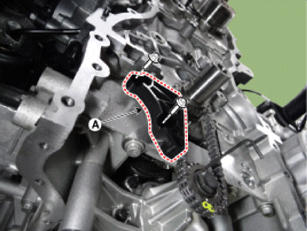

Remove the balance shaft chain guide (A).

Courtesy of HYUNDAI MOTOR AMERICA

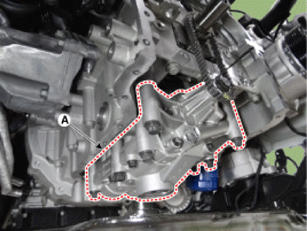

Remove the balance shaft module (BSM) (A) after removing the BSM mounting bolts.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Do not disassemble the balance shaft module (BSM).

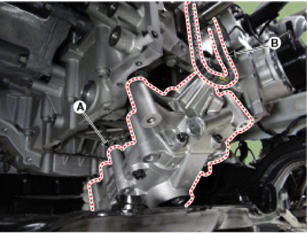

Remove the balance shaft module (BSM) (A) from the chain (B).

Courtesy of HYUNDAI MOTOR AMERICA

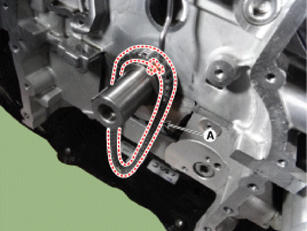

Remove the balance shaft chain (A).

Courtesy of HYUNDAI MOTOR AMERICA
