Components And Components Location: Components

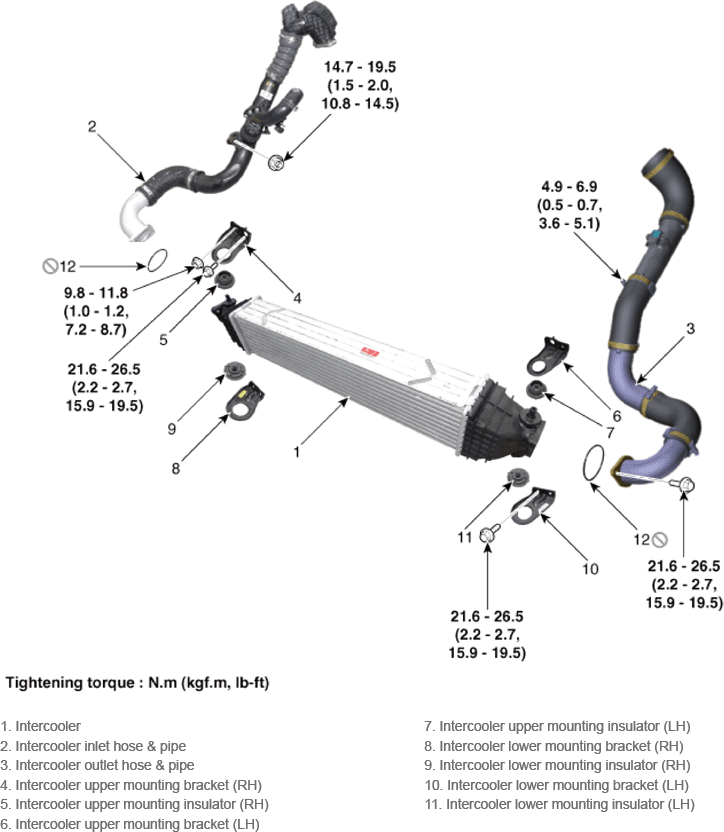

Fig 1: Intercooler Components Location With Torque Specifications

G14175258

Courtesy of HYUNDAI MOTOR AMERICA
