Home >> Genesis >> 2021 >> G70 2.0T, RWD, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System - 2.0L >> Intake Manifold >> Components And Components Location >> Components

Components And Components Location: Components

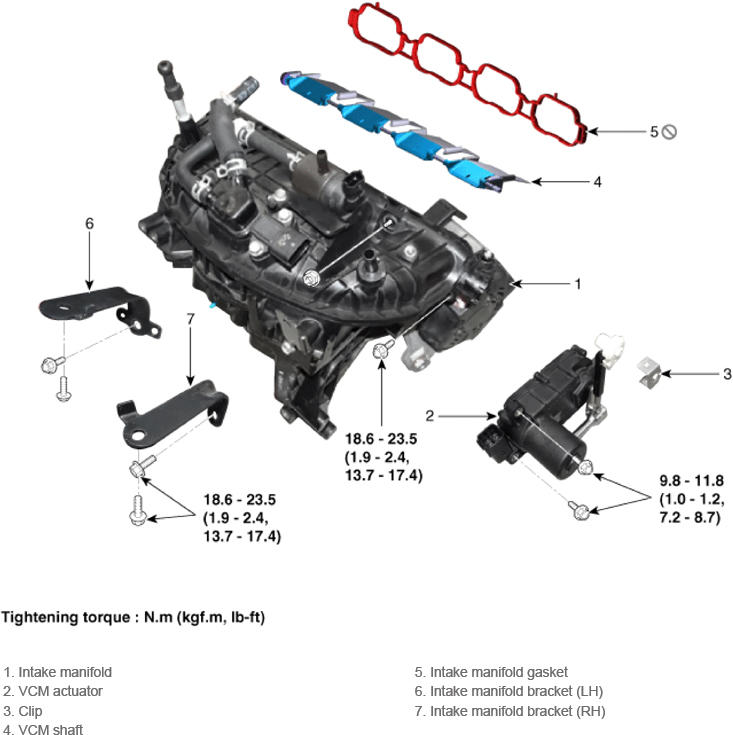

Fig 1: Intake Manifold Components Location With Torque Specifications

G14175270

Courtesy of HYUNDAI MOTOR AMERICA
