Repair Procedures: Inspection

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

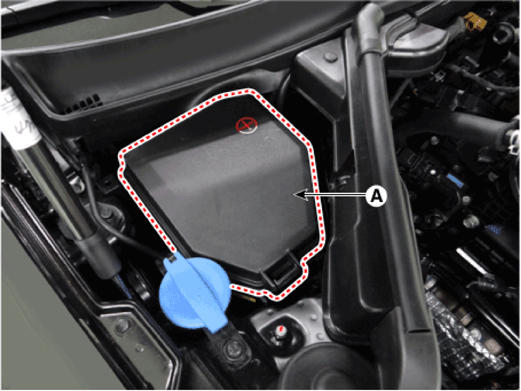

  2. Remove the fuse box cover (A).
    G14175400Courtesy of HYUNDAI MOTOR AMERICA

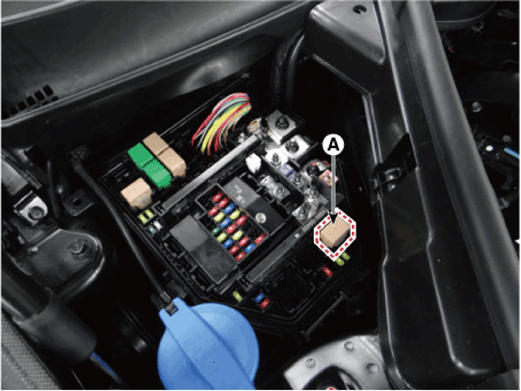

  3. Remove the starter relay (A).
    G14175401Courtesy of HYUNDAI MOTOR AMERICA
  4. Check for continuity between the terminals (30 and 87) using an ohmmeter.
    Terminal Resistance Measure
    30 - 87 1 MΩ or higher If there is continuity between the terminals, replace the relay.
    G14175402Courtesy of HYUNDAI MOTOR AMERICA
  5. Apply 12V to the terminal 85 and ground to the terminal 86 and then check for continuity between the terminals (30 and 87).
    Terminal Resistance Measure
    30 - 87 1Ω or less If there is no continuity between the terminals, replace the relay.
    G14175403Courtesy of HYUNDAI MOTOR AMERICA
  6. Install the starter relay.
  7. Install the fuse box cove Calibration beam
