Repair Procedures: Removal

  1. Turn the ignition switch OFF.

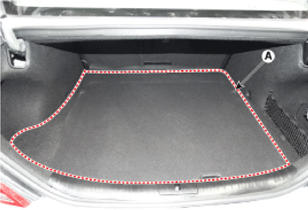

  2. Remove the luggage covering (A).
    G14175364Courtesy of HYUNDAI MOTOR AMERICA

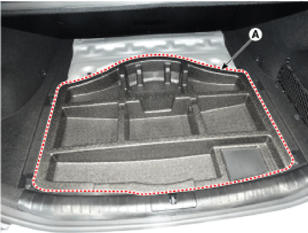

  3. Remove the luggage center tray (A).
    G14175365Courtesy of HYUNDAI MOTOR AMERICA
  4. Turn the ignition switch OFF and disconnect the battery negative (-) terminal (A).
    G14175366Courtesy of HYUNDAI MOTOR AMERICA

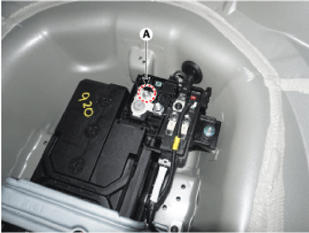

  5. Disconnect the battery positive (+) terminal (A).
    G14175367Courtesy of HYUNDAI MOTOR AMERICA

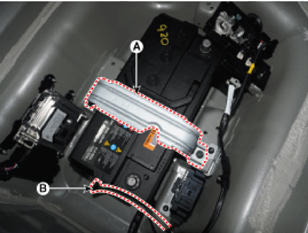

  6. Disconnect the vent hose (B).
  7. Remove the mounting band (A).
    G14175368Courtesy of HYUNDAI MOTOR AMERICA

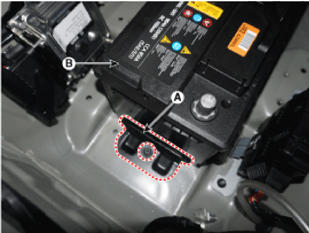

  8. Remove the mounting bracket (A) and then remove the battery (B).
    G14175369Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the battery.
