Repair Procedures: Removal

  1. Turn the ignition switch OFF.

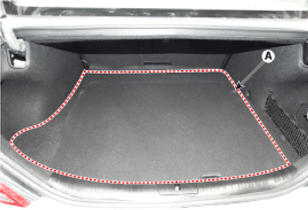

  2. Remove the luggage covering (A).
    G14175378Courtesy of HYUNDAI MOTOR AMERICA

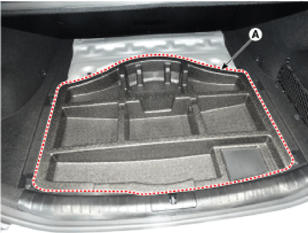

  3. Remove the luggage center tray (A).
    G14175379Courtesy of HYUNDAI MOTOR AMERICA

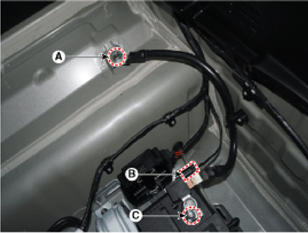

  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
  6. Remove the battery sensor by loosening the mounting bolts (C).
    G14175380Courtesy of HYUNDAI MOTOR AMERICA
