Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the drive belt.

    (Refer to Engine Mechanical System - "DRIVE BELT ")

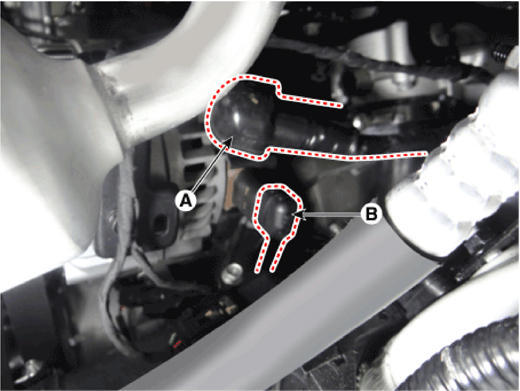

  3. Disconnect the alternator connector (B), and remove the cable (A) from alternator "B" terminal.
    G14175346Courtesy of HYUNDAI MOTOR AMERICA

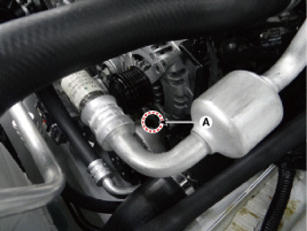

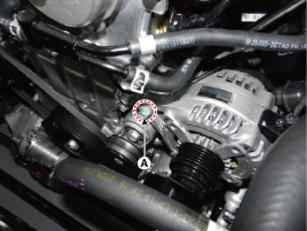

  4. Remove the alternator lower bolt and upper bolt (A).
    G14175347Courtesy of HYUNDAI MOTOR AMERICA
    G14175348Courtesy of HYUNDAI MOTOR AMERICA

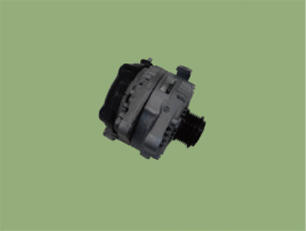

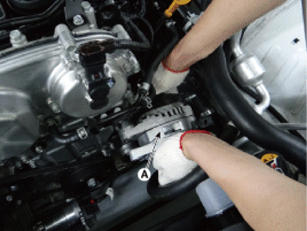

  5. Remove the alternator (A).
    G14175349Courtesy of HYUNDAI MOTOR AMERICA
    G14175350Courtesy of HYUNDAI MOTOR AMERICA
