Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
    CAUTION:
    • Wait at least 30 seconds after separating the cable.
  2. Remove the driver airbag (DAB) module and clock spring.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING )

  3. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  4. Remove the steering column shroud lower panel.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

  5. Disconnect the clock spring connector (A).
    G14177134Courtesy of HYUNDAI MOTOR AMERICA

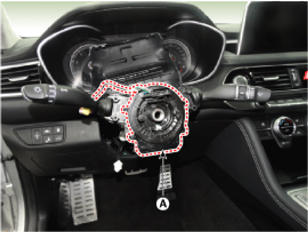

  6. Remove the clock spring from the steering column (A).
    G14177135Courtesy of HYUNDAI MOTOR AMERICA
