Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the rear seat cushion assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the rear seat back assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Slightly remove the rear door weatherstrip.
- Remove the rear door scuff trim.
(Refer to "DOOR SCUFF TRIM ")
- Remove the rear door pillar trim.
(Refer to "REAR PILLAR TRIM ")

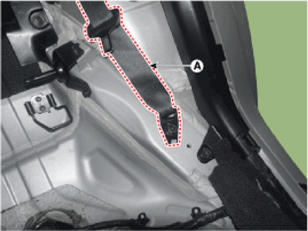

- After loosening the mounting bolt, remove the rear seat belt lower anchor (A).
Tightening torque:
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

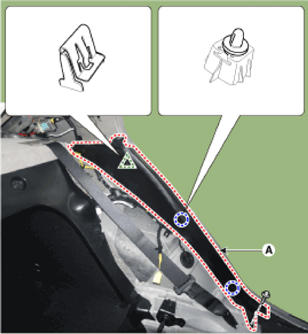

- After loosening the mounting screws, remove the rear wheel house trim (A).

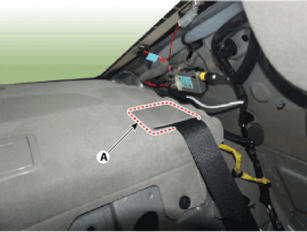

- Using a screwdriver or remover, remove the rear seat belt upper cover (A).
- Loosen the bolts, remove the luggage partition center trim cover (A).

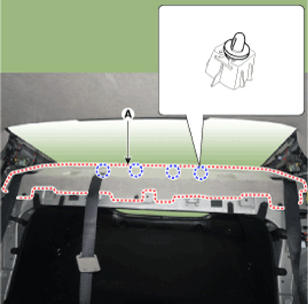

- Loosen the bolts, remove the rear package tray trim (A).

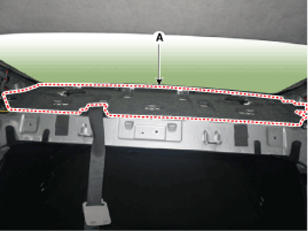

- Remove the rear package tray pad (A).
- To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
