Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Using a screwdriver or remover, remove the door scuff trim (A).

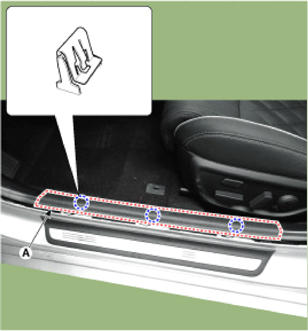

[Front]

Courtesy of HYUNDAI MOTOR AMERICA

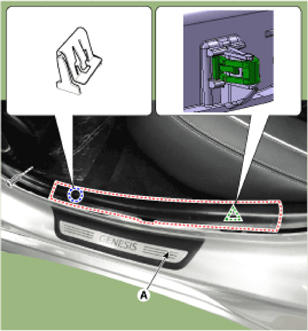

[Rear]

Courtesy of HYUNDAI MOTOR AMERICA
