Home >> Genesis >> 2021 >> G70 2.0T, RWD, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Integrated Body Control Unit (IBU) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad under cover RH.

    (Refer to Body - "CRASH PAD UNDER COVER ")

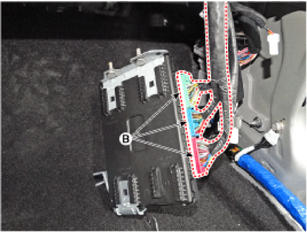

  3. Disconnect the connector (B) and then remove the IBU after loosening the mounting nuts.
    G14177816Courtesy of HYUNDAI MOTOR AMERICA
    G14177817Courtesy of HYUNDAI MOTOR AMERICA
