Repair Procedures: Inspection: Notes

Steering Wheel Remote Control system (SWRC) can be diagnosed by GDS because it receives and sends signals through CAN communication.

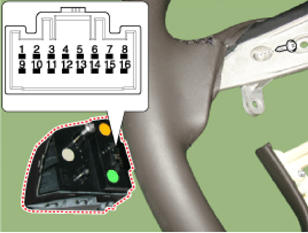

1. Check for resistance between terminals in each switch position (LH).

   Courtesy of HYUNDAI MOTOR AMERICA

   [Audio]

   Switch	Connector Terminal	Resistance (±5%)
   SEEK UP	3-6	390 Ω
   SEEK DN	3-6	610 Ω
   Mode	3-6	910 Ω
   MUTE	3-6	1.38 kΩ
   Voice	3-6	2.13 kΩ
   END	3-6	3.68 kΩ
   SEND	3-6	8.58 kΩ

2. Check for resistance between terminals in each switch position (RH).

   Courtesy of HYUNDAI MOTOR AMERICA

   [Cruise]

   Switch	Connector Terminal	Resistance (± 5%)
   CANCEL	3-4	390 Ω
   RES+	3-4	610 Ω
   SET-	3-4	910 Ω
   Cruise ON/OFF	3-4	1.38 kΩ
   SLD	3-4	2.13 kΩ
   SCC	3-4	3.63 kΩ
