Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Open the trunk, remove the left trunk luggage trim.

    (Refer to Body - "TRUNK TRIM ")

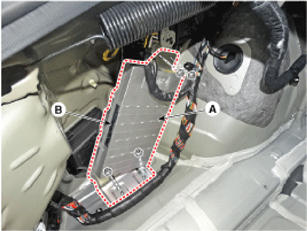

  3. Remove the external amplifier (A) after disconnecting the connector (B) and loosening the mounting nuts.
    G14177671Courtesy of HYUNDAI MOTOR AMERICA
