Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Disassembly the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")

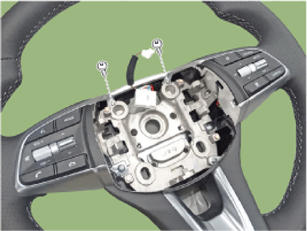

- Disconnect the paddle shift switch.
(Refer to Steering System - "STEERING WHEEL ")

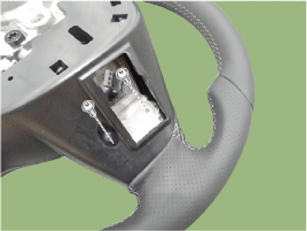

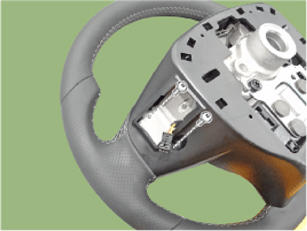

- Remove the steering wheel remote control after loosening the mounting screws.
[Back]
[Front]

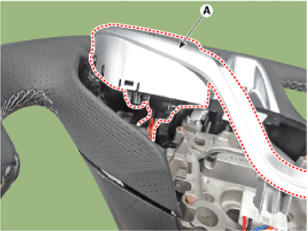

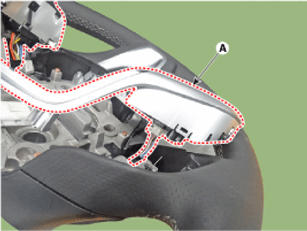

- Disconnect the paddle shift switch connector and then remove the steering wheel remote control (A).
