Repair Procedures: Removal

  1. Turn the ignition switch OFF.

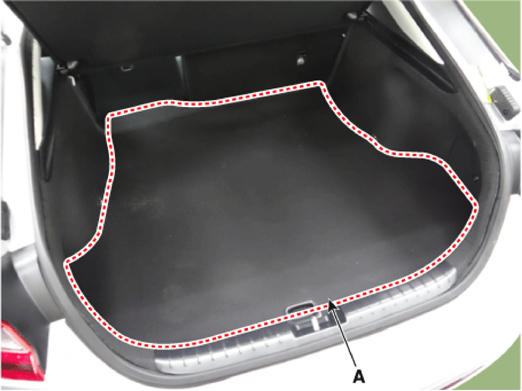

  2. Remove the luggage covering (A).
    G14175712Courtesy of HYUNDAI MOTOR AMERICA

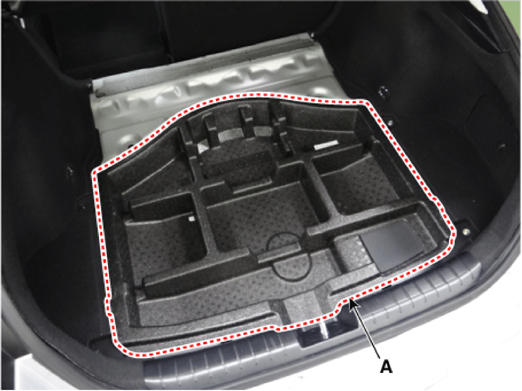

  3. Remove the luggage center tray (A).
    G14175713Courtesy of HYUNDAI MOTOR AMERICA

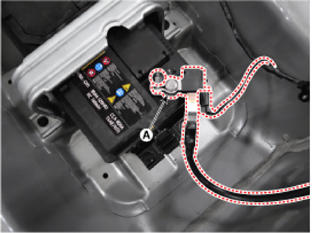

  4. Turn the ignition switch OFF and disconnect the battery negative (-) terminal (A).
    G14175714Courtesy of HYUNDAI MOTOR AMERICA

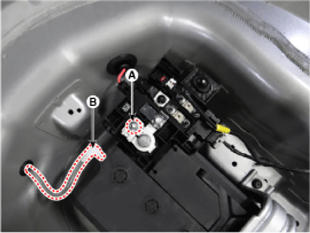

  5. Disconnect the battery positive (+) terminal (A).
  6. Disconnect the vent hose (B).
    G14175715Courtesy of HYUNDAI MOTOR AMERICA

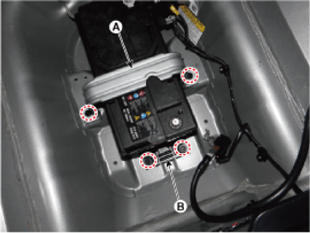

  7. Remove the mounting band (A).
  8. Remove the mounting bracket (B) and then remove the battery.
    G14175716Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the battery.
