Repair Procedures: Installation

  1. Install the water pump belt.
    1. Insert the SST (09252-C1000) between the water pump pulley and the water pump belt
    2. Install the water pump belt (A) by turning the damper pulley clockwise.
      G14174979Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Install the water pump belt while being careful not to damage the water pump belt caused by water pump pulley mounting bolts (B).

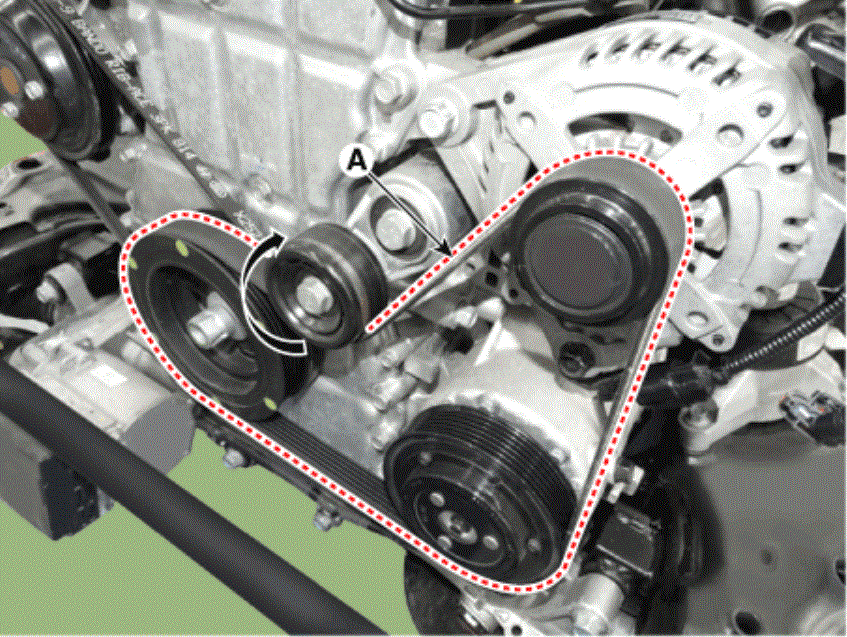

  2. For release the tension, turn the drive belt tensioner clockwise then install the drive belt (A).
    Fig 1: Engine Drive Belt Routing Diagram
    G14174980Courtesy of HYUNDAI MOTOR AMERICA
  3. Install in the reverse order of removal.
