Repair Procedures: Installation
- To install, reverse the removal procedures.

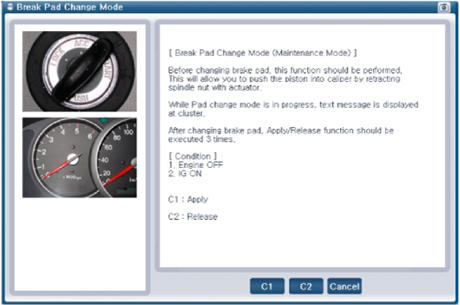

- Perform "Brake Pad Change Mode" using the GDS, before removing the parking brake assembly.
- Select the C1 (Apply) in the screen below.NOTE:
- After completing the replacement of the parking brake assembly, be sure to repeat the Apply/Release three times in the brake pad replacement mode.

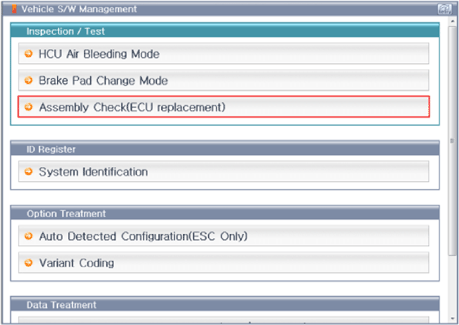

- After replacing the parking brake assembly, execute the "Assembly Check (ECU replacement)" of the additional function to check that the mounting is successful.
- After install, check the parking brake and brake switch operating.
