Repair Procedures: Inspection: Notes

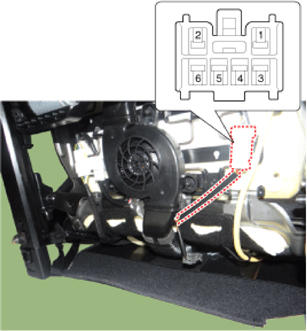

- Check for continuity and measure the resistance between terminals No 3 and No 6.
Standard value
Driver/Assists (cushion): 3.05Ω±10%/20°C
Driver/Assists (cushion + back): 1.56Ω±10%/20°C
- Operate the seat heater after connecting the connector, and then check the thermostat by measuring the temperature of seat surface.
Standard value
1st: cushion: 36±2°C, back: 40±2°C
2nd: cushion: 39±2°C, back: 45±2°C
3rd: cushion: 42±2°C, back: 50±2°C
Ventilating seat consists of three units: the ventilating seat unit for control, switch for input and blower for output.
