Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
NOTE:
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the front seat assembly.
(Refer to - "FRONT SEAT ASSEMBLY ")

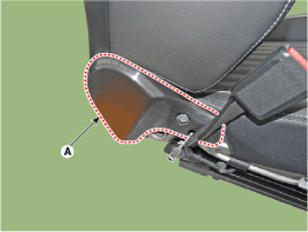

- Loosen the screws and remove the front seat shield inner cover (A).
- To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
