Repair Procedures: Inspection

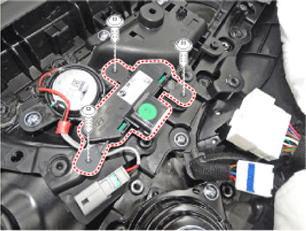

  1. Remove the memory power seat connector
    G14177832Courtesy of HYUNDAI MOTOR AMERICA
  2. When each switch is pressed, check the electric current between memory power seat switch connector and grounding, and if the electricity does not match the specification, replace the switch.
    Switch Terminal Resistance
    SET 1-5 680Ω
    Memory 1 1.5 kΩ
    Memory 2 3.3 kΩ
