Repair Procedures: Inspection

  1. Disconnect the negative (-) battery terminal.

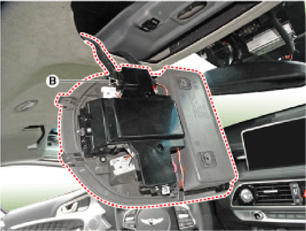

  2. Disconnect the connector (B).

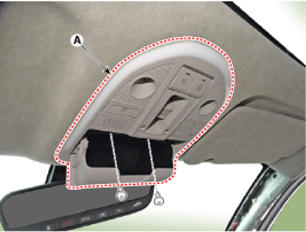

  3. Remove the overhead console (A) after loosening the screws.
    G14177718Courtesy of HYUNDAI MOTOR AMERICA
    G14177719Courtesy of HYUNDAI MOTOR AMERICA

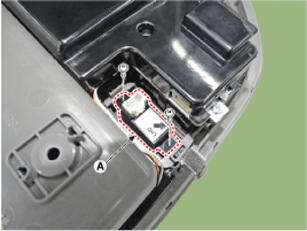

  4. Remove the mic (A) after loosening the screws.
    G14177720Courtesy of HYUNDAI MOTOR AMERICA
  5. Check for the continuity between the mic terminals.
