Driver Door Module (DDM)

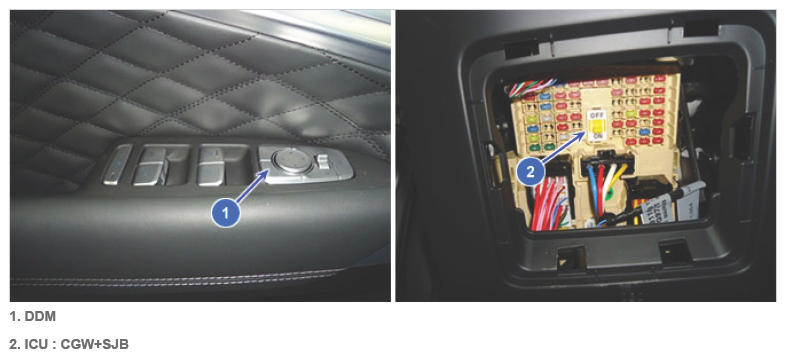

G14199415Courtesy of HYUNDAI MOTOR AMERICA

DDM* is communicating information with units/modules that configures B-CAN communication network, and controls Driver Door Lock, Lamps (Puddle Lamp, Side Mirror Turn Indicator and etc.), Out Side Mirror operation.

NOTE: DDM* (Driver Door Module): "DRIVER DOOR MODULE"
ICU (Integrated Central control Unit): "ICU JUNCTION BLOCK"
CGW (Central GateWay): "ICU JUNCTION BLOCK_IPS CONTROL MODULE"
SJB (Smart Junction Block): "ICU JUNCTION BLOCK"
